Product Description

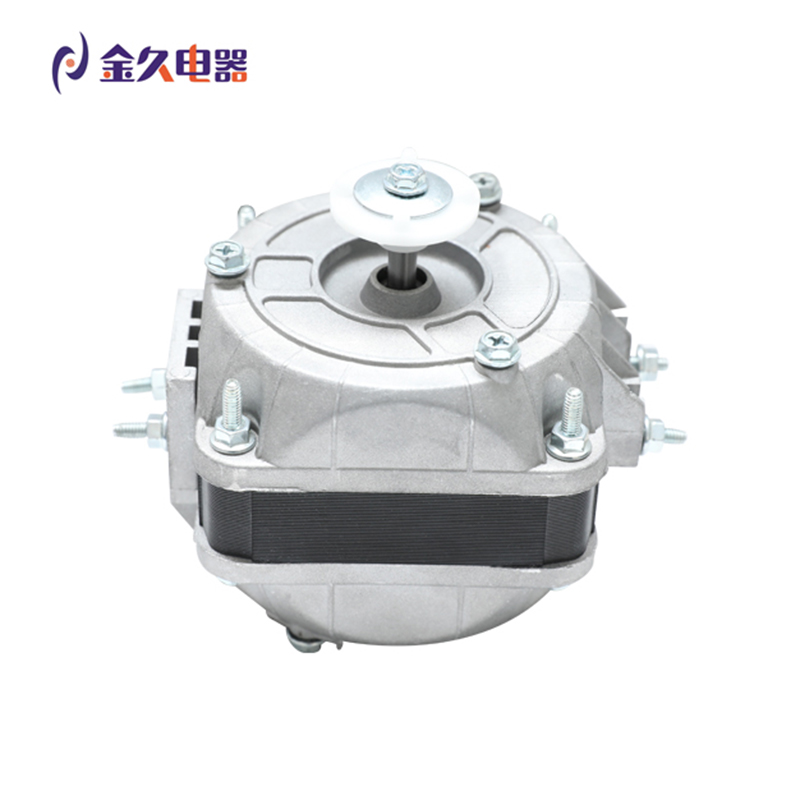

The basic principle of the YZF 4Q refrigerator freezer condenser motor is that the stator wire package, that is, the main winding, generates a magnetic potential, and the magnetic potential enters the air gap through the stator core, most of the magnetic potential enters the air gap through the uncovered part of the magnetic pole, and a small part of the magnetic potential enters the air gap through the short circuit ring - the role of the secondary winding in the reactance (or Faraday electromagnetic induction principle) causes a lagging magnetic potential, which enters the air gap. Therefore, two magnetic potential vectors with different phase angles in the air gap magnetic field are superimposed to form a synthetic magnetic potential.The YZF 4Q refrigerator freezer condenser motor has the advantages of simple structure and convenient manufacture.Refrigerator freezer condenser motor without additional winding and capacitors,suitable for mass production,low cost.Low noise and no radio interference from refrigerator freezer condenser motor.Refrigerator freezer condenser motor are generally used in no-load or light-load starting small-capacity occasions, such as fans, electric models, etc.
| Instructions for use | |
| Way of working: | S1 |
| Protection level: | IP42 |
| Insulation class: | B |
| Environment temperature: | -30℃~50℃ |
| Application range: | FAN BLADE Φ172 240~300 m³/h |
| Φ200 360~460m³/h | |
| Φ230 480-680m³/h | |
| Φ250 700~1050m³/h | |
| Φ300 1100~1500m³/h | |

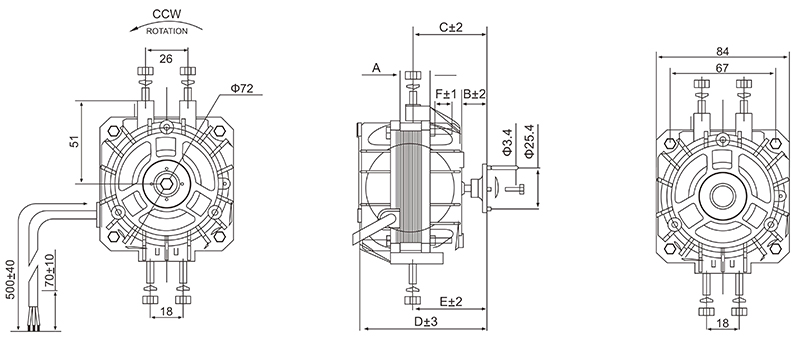

| Type | Voltage | Frequency | Pated Input | Output | Rated current | Rated Speed | Air volume | Fan blade | Net weight | A | B | C | D | E | License |
| (V) | (HZ) | (W) | (W) | (A) | (r/min) | (m³/h CFM) | (mm) | (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| YZF5-13-18/26 | 220-240 | 50/60 | 20 | 2 | 0.14 | 1300 | 260 | Φ172 | 0.8 | 13 | 12 | 43 | 78 | - | CE CCC RoHS |
| YZF5-13-18/26 | 220-240 | 50/60 | 29 | 5 | 0.2 | 1300 | 360 | Φ200 | 0.8 | 13 | 12 | 43 | 78 | - | CE CCC RoHS |
| YZF5-13-18/26 | 110-120 | 60 | 33 | 6 | 0.55 | 1550 | 430 | - | |||||||
| YZF7-20-18/26 | 220-240 | 50/60 | 31 | 7 | 0.23 | 1300 | 480 | Φ230 | 1.1 | 19 | 13 | 44 | 85 | - | CE CCC RoHS |
| YZF10-20-18/26 | 220-240 | 50/60 | 36 | 10 | 0.25 | 1300 | 500 | Φ230 | 1.1 | 19 | 13 | 44 | 85 | - | CE CCC RoHS |
| 110-120 | 60 | 55 | 10 | 0.8 | 1550 | 620 | |||||||||
| YZF12-20-18/26 | 220-240 | 50/60 | 54 | 12 | 0.36 | 1300 | 720 | Φ230 | 1.1 | 19 | 13 | 44 | 85 | - | CE CCC RoHS |
| YZF16-25-18/26 | 220-240 | 50/60 | 60 | 16 | 0.45 | 1300 | 1000 | Φ250 | 1.4 | 25 | 14 | 45 | 92 | - | CE CCC RoHS |
| YZF18-25-18/26 | 110-120 | 60 | 70 | 18 | 1.01 | 1550 | 1050 | ||||||||
| YZF18-30-18/26 | 220-240 | 50/60 | 70 | 18 | 0.5 | 1300 | 1050 | Φ250 | 1.5 | 30 | 17 | 48 | 101 | 21 | CE CCC RoHS |
| 110-120 | 60 | 75 | 18 | 1.1 | 1450 | ||||||||||
| YZF25-40-18/26 | 220-240 | 50/60 | 90 | 25 | 0.7 | 1300 | 1250 | Φ300 | 1.8 | 40 | 18 | 49 | 112 | 31 | CE CCC RoHS |
| 110-120 | 60 | 100 | 25 | 1.4 | 1450 | ||||||||||
| YZF34-45-18/26 | 220-240 | 50/60 | 110 | 34 | 0.85 | 1300 | 1400 | Φ300 | 2 | 45 | 22 | 53 | 121 | 36 | CE CCC RoHS |
| 110-120 | 60 | 110 | 34 | 1.5 | 1450 |
