Product Description

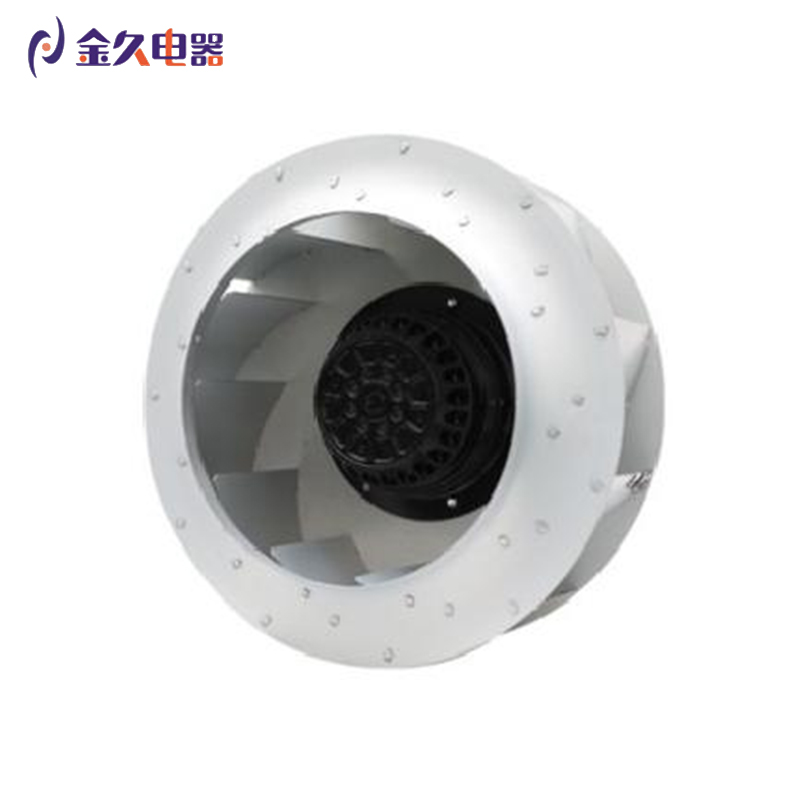

Centrifugal Fan With Backward Impeller
This series of centrifugal fans uses AC capacitors to operate asynchronous motors,which are divided into two categories: inner rotor and external transmitter. The fan has two modes of speed control, which is controlled by thyristor stepless speed regulation and motor winding tapping. The conventional three-speed adjustment Speed; The use of advanced technology to design the fan, with the advantages of convenient installation, reliable operation, low noise, large air volume, energy saving and high efficiency; using years of research and development technology of motor production, eliminate the AC electromagnetic noise generated during the operation of the motor, superior to similar products. Has the advantage of cheap high quality.
This series of centrifugal fans is mainly used for ventilation and air exchange of various equipment such as FFU air filter unit, air purifier, and air conditioner outside machine.
Voltage: Single AC 220V/50HZ, can customize the motor with diferent voltage and frequency.According to customer needs can be customized fourth gear, five gear, speedmotor.
Centrifugal fan rated air flow from 200 to 9500m³/h.
The motor output power ranges from 5W to 1500W micro motors.
Motor insulation grade B,F, internal 125-135℃ thermal protector.
The average service life of the motor is more than 30,000 hours. Work mode: S1.
Motor applicable ambient temperature:-30℃-60℃.
The motor passed the European CE certification and China's CCC certification.
Before the motor is used, the motor ground wire must be effectively connected to theexternal grounding device.
| Model.No. |
Voltage (V) |
Frequency (HZ) |
Current (A) |
Power input (W) |
Speed (rpm) |
Capacitor (VF) |
Air flow (m³h/CFM) |
Noise (dB(A)) |
Operating Temperature (Min/Max(℃)) |

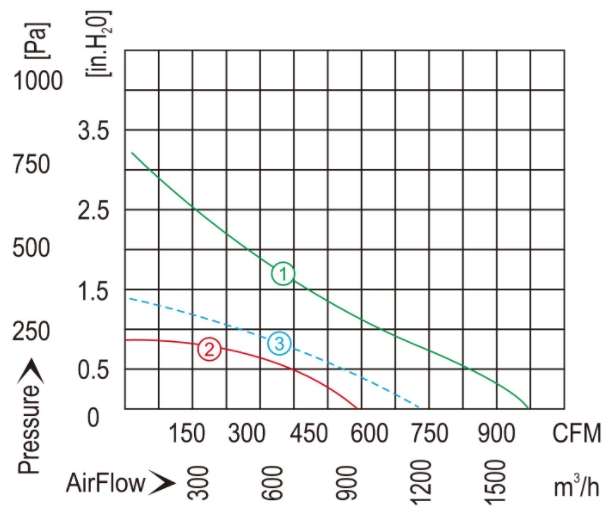

Curve No. # | Approvals |
| YWF 4E-92/280-80A | 115/120 | 60 | 0.68 | 80 | 1650 | 10 | 1220/720 | 67 | -30/+60 | ③ | CE |
| YWF 2E-92/280-80B | 220/230 | 50 | 1.06 | 240 | 2450 | 6 | 1800/1060 | 79 | -30/+60 | ① | CE CCC |
| YWF 4E-92/280-80C | 220/230 | 50 | 0.43 | 81 | 1380 | 4 | 1030/607 | 63 | -30/+60 | ② | CE CCC |
| 220/230 | 60 | 0.6 | 102 | 1610 | 4 | 1220/720 | 66 | -30/+60 | ③ | CE CCC |
