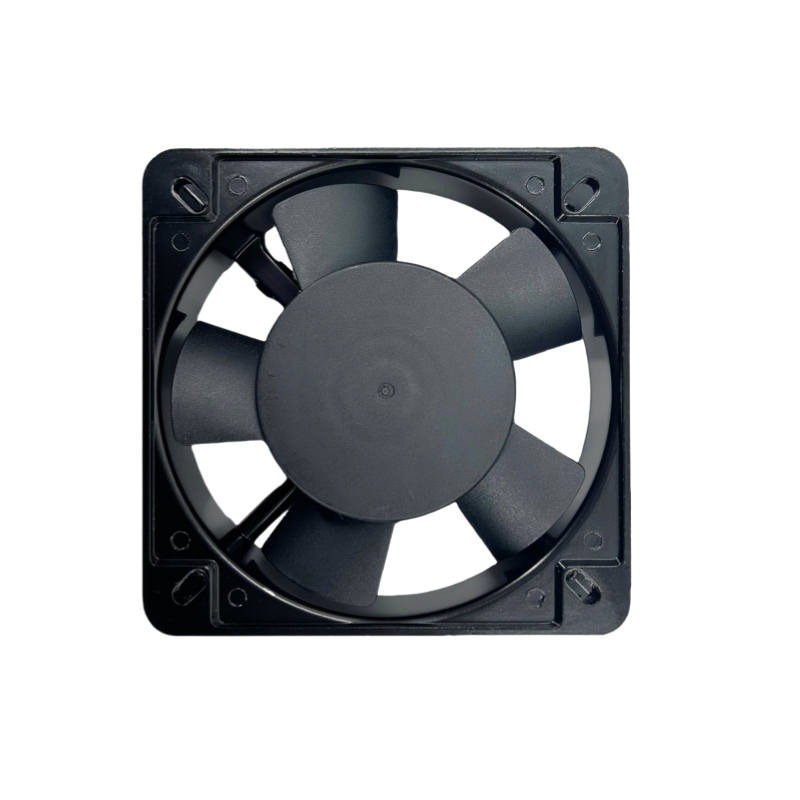

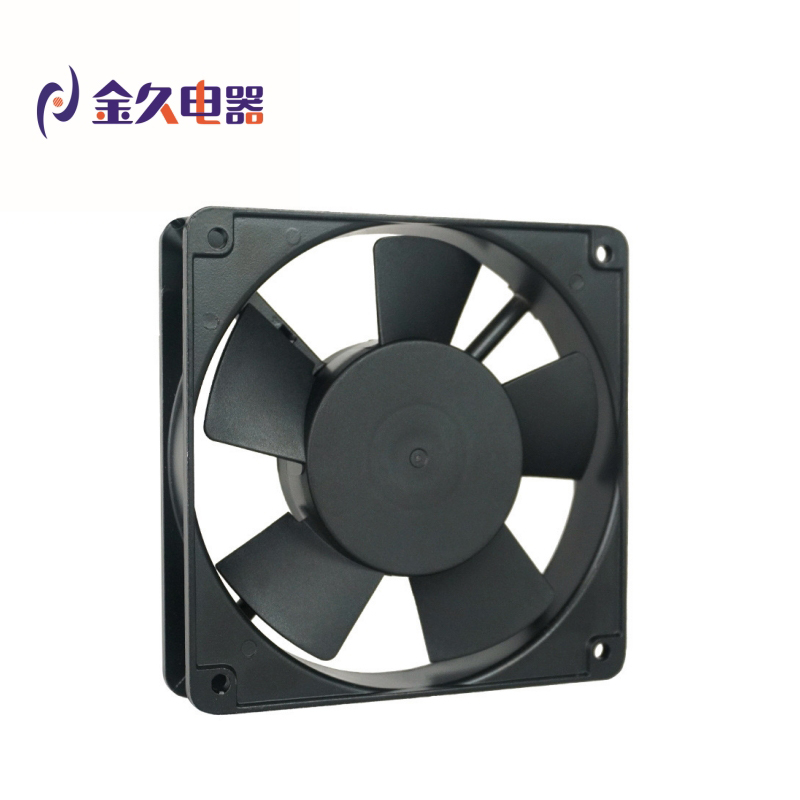

11025 Industrial Electric Silent Fan

With the continuous improvement of electronic technology,there are more and more places that need to be used to industrial electric silent fan,the fan is mainly to solve the heat dissipation of the product,the fan as the name suggests,is used to cool the heat,many places in life will use the fan,is an indispensable auxiliary equipment.

When using computer,we usually have a industrial electric silent fan for computer CPU heat dissipation,it is a way to protect the computer.Because the computer will produce heat after a long time of use,if the heat can not be distributed in time,it will lead to the CPU temperature is too high and automatic shutdown or blue screen of death phenomenon,affecting normal use,if serious,it will burn the CPU and increase the cost of maintenance parts.

Also equipped with a industrial electric silent fan,in the car because the car in the process of driving,the mechanical energy is converted into heat energy,let the car interior temperature,in order to ensure the car interior parts are not burn out,you need a industrial electric silent fan for cooling heat dissipation,ensure parts are in normal temperature,not fail.

General production equipment in the factory will use industrial industrial electric silent fan,because of the production environment,a lot of equipment in the heavy dust,ventilation is not strong workshop work,use for a long period of time,will make the equipment dust accumulated a lot of sundry,cannot effectively cooling the use of a industrial electric silent fan,can well solve these problems, for equipment, enhance ventilation cooling dust.Effectively extend the service life of the equipment

.Additional industrial electric silent fan can also be used in communications equipment,filter industry,UPS power supply,medical apparatus and instruments,and many other industries,wide application,the market scale is huge.



MODEL	Bearing System		Rated Voltage	Freq.	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
	Ball	Sleeve	VAC	Hz	A	W	RPM	CFM	mmH2O	dBA	g
11025MSL110/125A		√	110-125	50/60	0.20/0.18	18/17	2000/2500	22/26	3.0/4.50	30/35	270
11025MBL110/125A	√						2400/2800	25/28	3.3/4.83	32/36
11025MSL200/240A		√	200-240		0.10/0.09		2300/2700	22/26	3.0/4.50	30/35
11025MBL200/240A	√						2400/2800	25/28	3.3/4.83	32/36



GENERAL SPECIFICATIONS
Bearing Type	Sleeve Bearing&Ball Bearing
Material	Impeller; Plastic; Frame; Aluminum Alloy
LeadWire	UL Type
Operation Temperature	-10℃-65℃,35%-85%RH
Storage Temperature	-40℃-70℃,35%-85%RH
