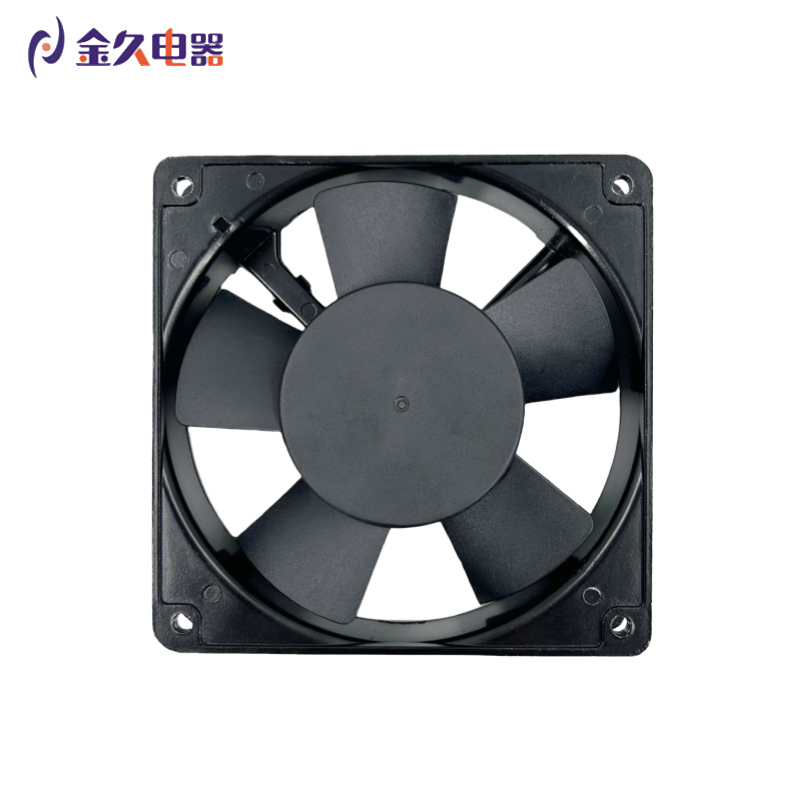

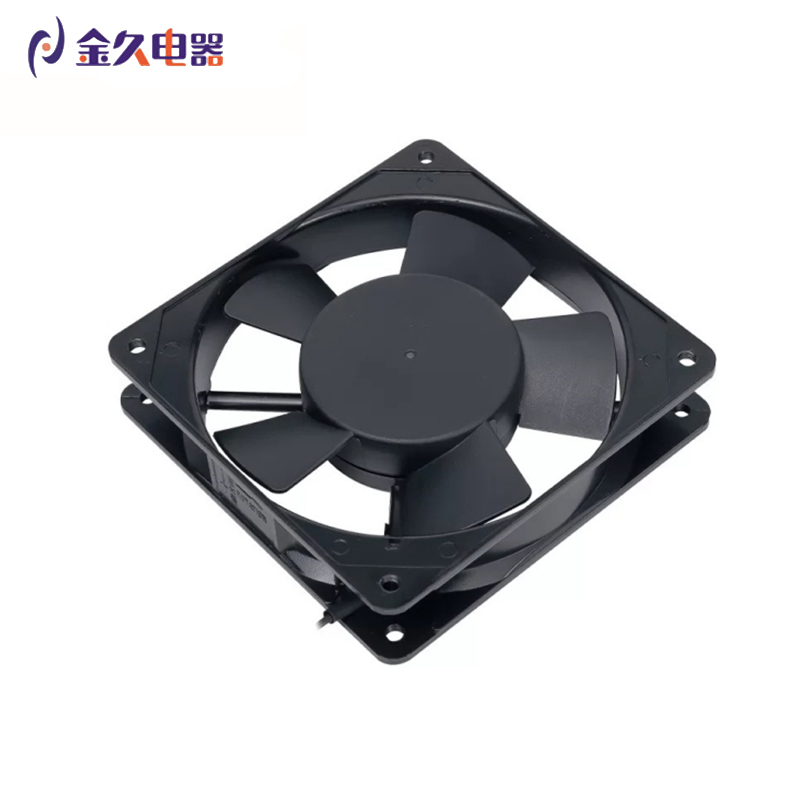

12025 Low Noise Axial Charge Cooling Fan

The trouble-free working time of the low noise axial charge cooling fan is called the service life,and the service life of the high-quality products produced by JINJIU company can generally reach tens of thousands of hours.In general,the service life of the low noise axial charge cooling fan will be affected by the use of the environment and working pressure.If the low noise axial charge cooling fan works in a high temperature working environment,it will accelerate the volatilization of the lubricating fluid in the oil bearing,so that the expansion of the device increases friction,the coil resistance also increases, and the vicious cycle of heating and temperature increase accelerates the aging of electronic components.The dust will change the mass distribution of the fan blade,increase friction,increase wind resistance,affect its own heat dissipation,prevent heat exchange between the heat sink and the air,and generate electrostatic discharge to damage components and equipment.Poor use of the environment may make the effect of the low noise axial charge cooling fan greatly reduced,and life greatly reduced.If the working pressure of the low noise axial charge cooling fan is large,the faster the fan speed,the faster the bearing wear,the more the stator winding coil and electronic components heat,and the life will be relatively shortened.



MODEL	Bearing System		Rated Voltage	Freq.	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
	Ball	Sleeve	VAC	Hz	A	W	RPM	CFM	mmH2O	dBA	g
12025MSL110/125A		√	110-125	50/60	0.20/0.18	18/6	2000/2200	57/64	3.3/3.8	40/45	280
12025MBL110/125A	√						2100/2800
12025MSL200/240A		√	200-240		0.10/0.09		2000/2200
12025MBL200/240A	√						2100/2300



GENERAL SPECIFICATIONS
Bearing Type	Sleeve Bearing&Ball Bearing
Material	Impeller; Plastic; Frame; Aluminum Alloy
LeadWire	UL Type
Operation Temperature	-10℃-65℃,35%-85%RH
Storage Temperature	-40℃-70℃,35%-85%RH
