Product Description

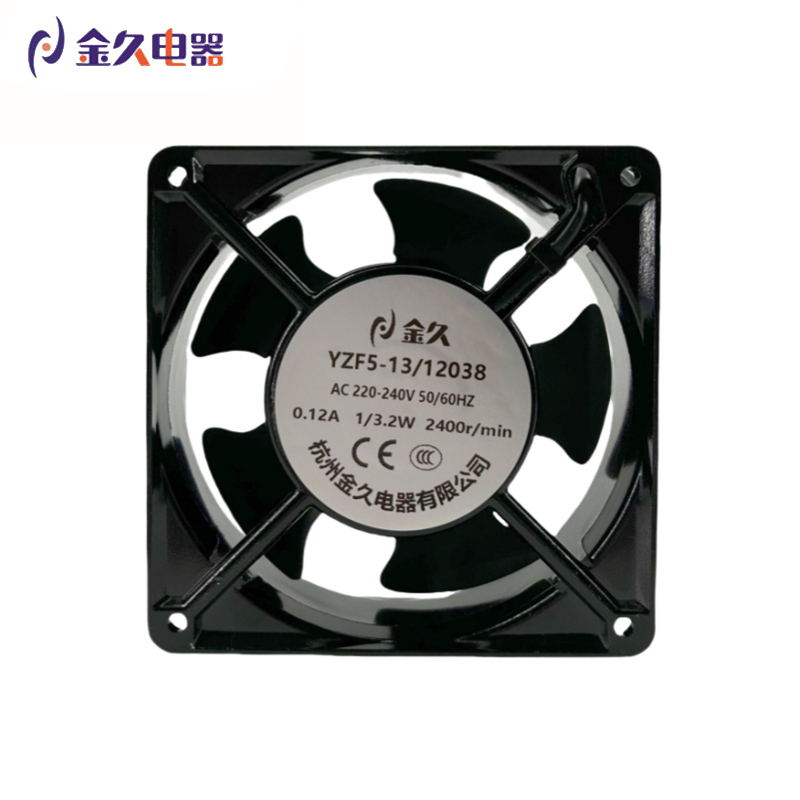

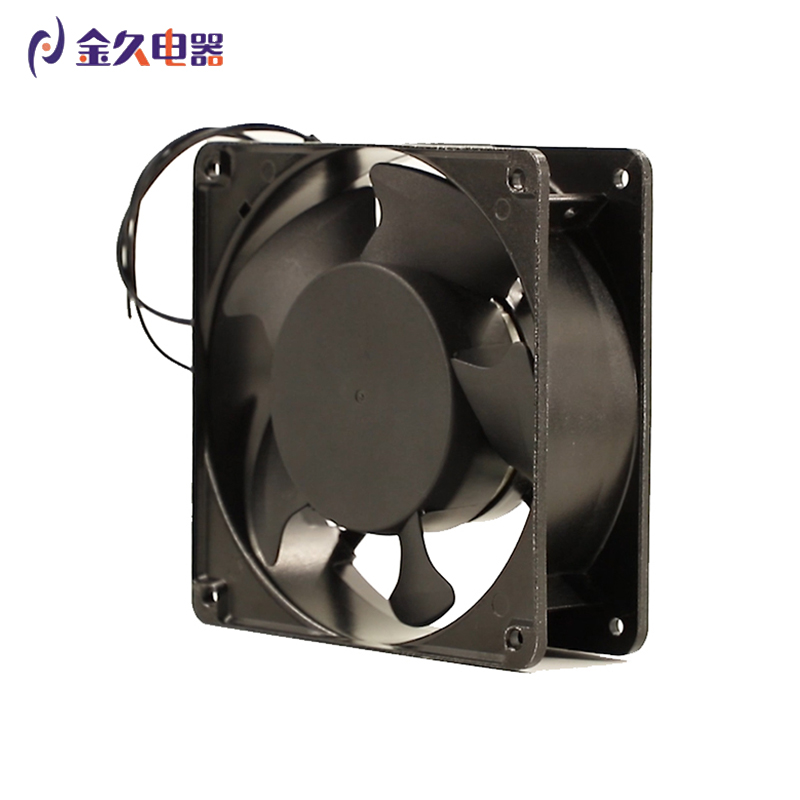

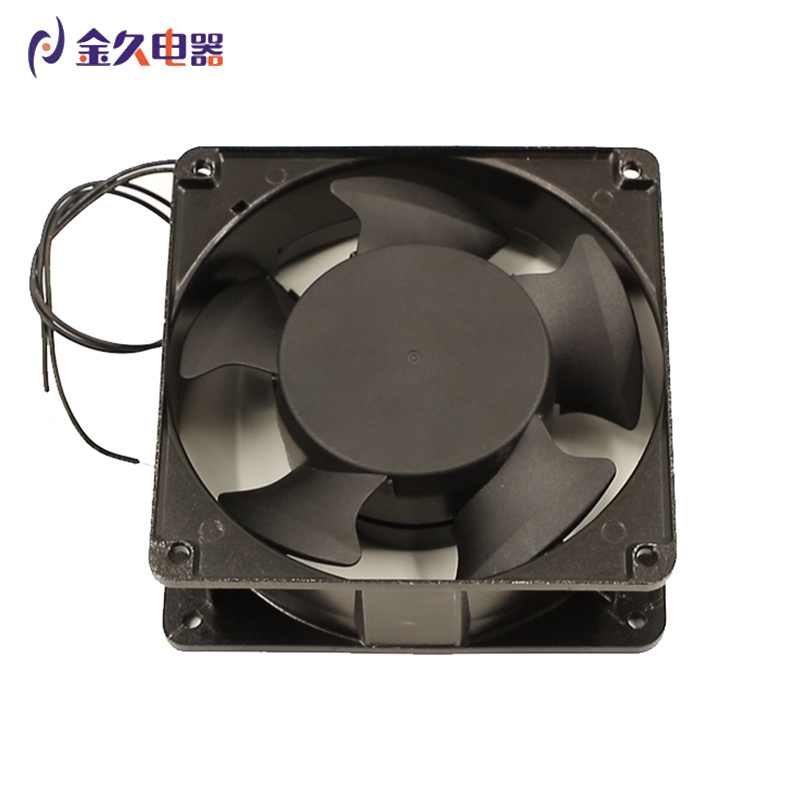

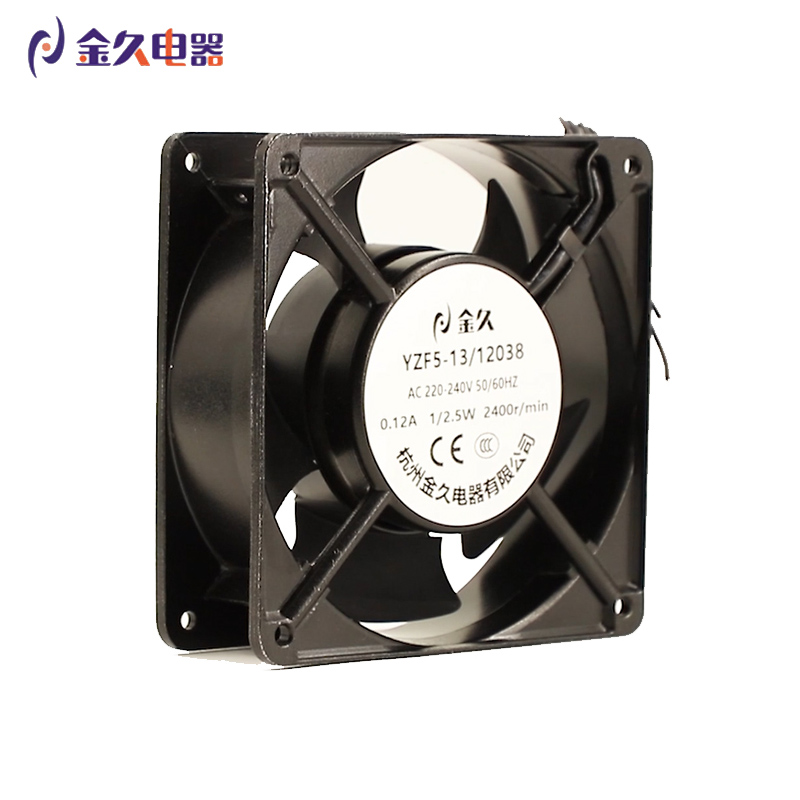

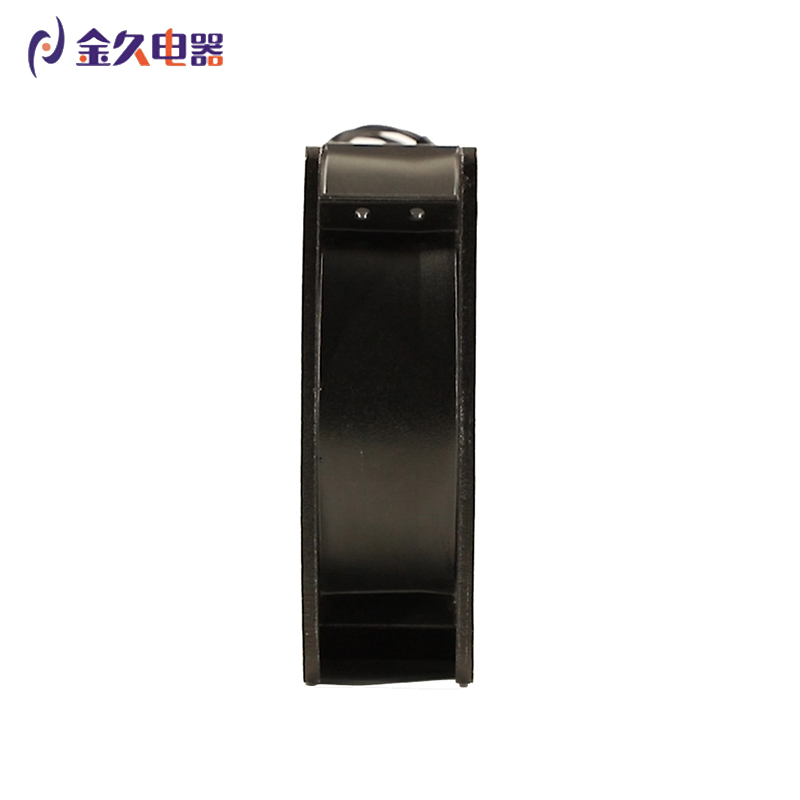

Ac Cooling Fan
12038 high temperature resistant AC cooling fan series is a heat dissipation fan,is an important heat dissipation equipment in modern industry,high temperature resistant AC cooling fan has simple structure,easy installation,good heat dissipation effect,long service life and so on.
The rated voltage of high temperature resistant AC cooling fan is 110V,220V,380V,ball bearing/oil bearing is optional,AC conventional speed 2400,2600,DC industrial high speed 3500 or more,the speed is adjustable.
The high temperature resistant AC cooling fan is usually used in the computer field,such as the heat dissipation of CPU,graphics cards and other equipment,and the automotive field is used for the heat dissipation of engines and coolants,helping to take away the heat generated during the operation of industrial equipment such as drives,welding and other equipment,ensuring that communication and electronic equipment such as medical and beauty instruments will not overheat during efficient operation.Prevent air purifiers,water dispensers and other household appliances from running for a long time due to overheating damage.
All in all,high temperature resistant AC cooling fan are widely used to protect equipment,improve performance,and extend life.
MODEL | Bearing System | Rated Voltage | Freq. | Rated Current | Power | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
Ball | Sleeve | VAC | Hz | A | W | RPM | CFM | mmH2O | dBA | g | |
12038LSL110/125A | √ | 110-125 | 50/60 | 0.1 | 10/9 | 2000/2300 | 66/72 | 3.2/5.1 | 35/39 | 500 | |
12038MSL110/125A | √ | 0.15 | 15/14 | 2300/2600 | 72/83 | 5.1/6.8 | 39/42 | ||||
12038HSL110/125A | √ | 0.26/0.24 | 20/19 | 2550/2900 | 95/106 | 8.4/9.7 | 44/49 | ||||
12038HBL110/125A | √ | ||||||||||
12038LSL220/240A | √ | 200-240 |
0.1 | 10/9 | 2000/2300 | 66/72 | 3.2/5.1 | 35/39 | |||
12038MSL220/240A | √ | 0.16 | 15/14 | 2300/2600 | 72/83 | 5.1/6.8 | 39/42 | ||||
12038HSL220/240A | √ | 0.14/0.12 | 20/19 | 2550/2900 | 95/106 | 8.4/9.7 | 44/49 | ||||
12038HBL220/240A | √ | ||||||||||
12038HSL380A | √ | 0.08/0.07 | |||||||||
12038HBL380A | √ |
GENERAL SPECIFICATIONS | |
Bearing Type | Sleeve Bearing&Ball Bearing |
Material | Impeller; Plastic; Frame; Aluminum Alloy |
LeadWire | UL Type |
Operation Temperature | -10℃-65℃,35%-85%RH |
Storage Temperature | -40℃-70℃,35%-85%RH |
