Product Description

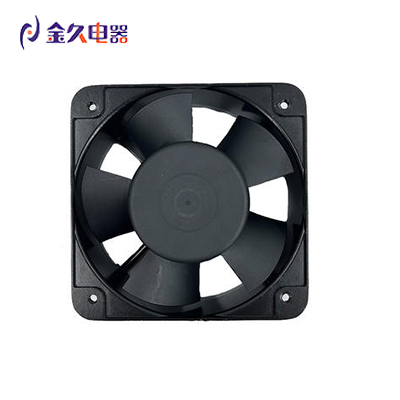

Ball Bearing Axial Flow Fan Cooling Fan
| MODEL | Bearing System | Rated Voltage | Freq. | Rated Current | Power | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| Ball | Sleeve | VAC | Hz | A | W | RPM | CFM | mmH2O | dBA | g | |
| 13038MSL110/125A | √ | 110-125 | 50/60 | 0.34/0.30 | 25/20 | 2250/2450 | 95/110 | 7.1/8.1 | 55/57 | 650 | |
| 13038MBL110/125A | √ | ||||||||||
| 13038MSL200/240A | √ | 200-240 | 0.18/0.14 | ||||||||
| 13038MBL200/240A | √ | ||||||||||
| GENERAL SPECIFICATIONS | |
| Bearing Type | Sleeve Bearing&Ball Bearing |
| Material | Impeller; Plastic; Frame; Aluminum Alloy |
| LeadWire | UL Type |
| Operation Temperature | -10℃-65℃,35%-85%RH |
| Storage Temperature | -40℃-70℃,35%-85%RH |
