Product Description

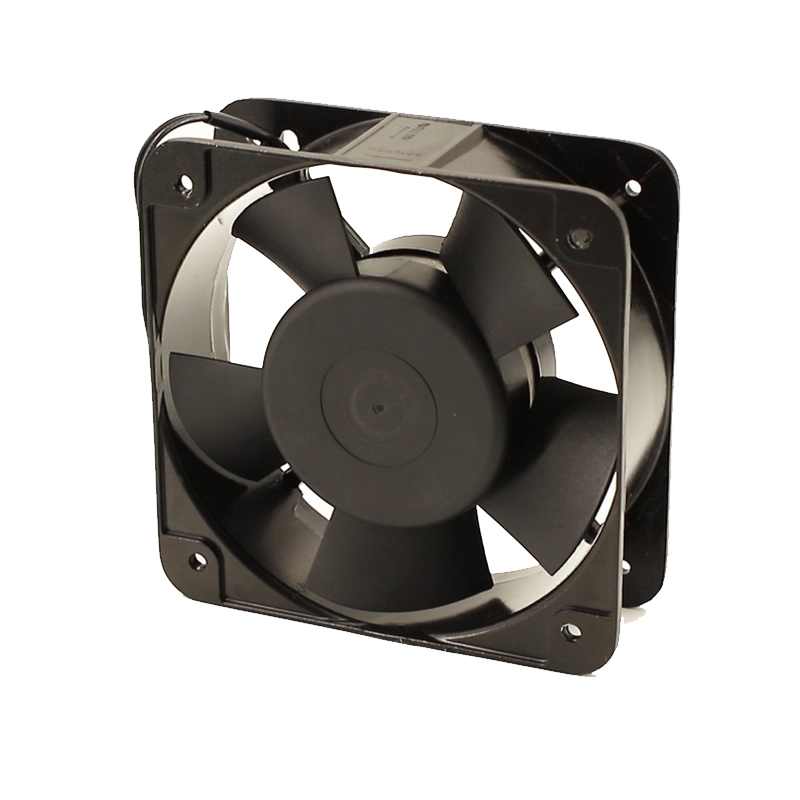

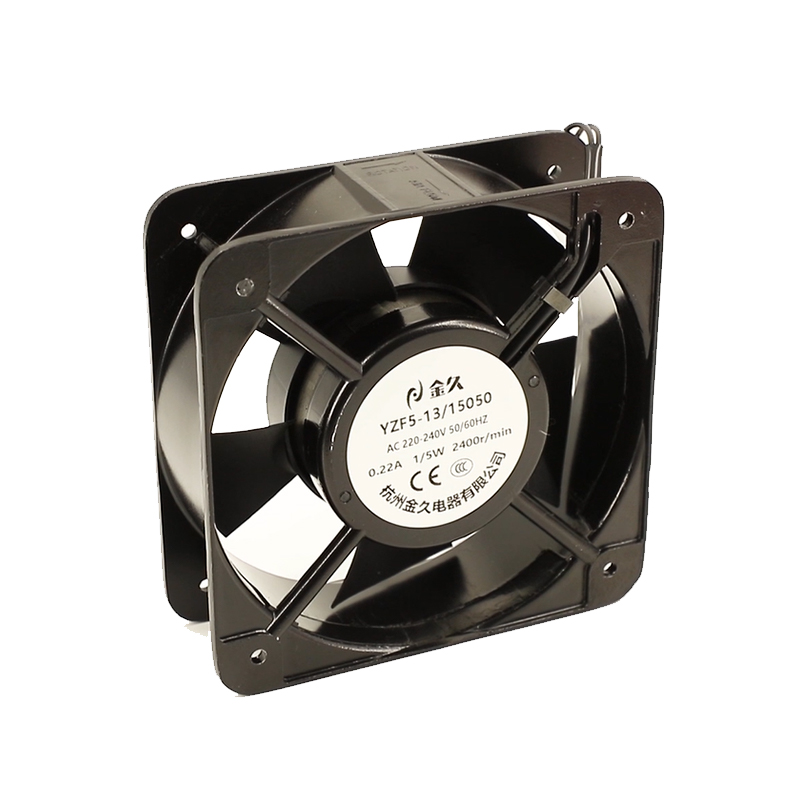

High Speed Axial Brushless Fan
The 15051 high speed axial brushless fan is a widely used cooling solution with a size specification of 150mmx150mmx51mm,and the current consumption of the 15051 high speed axial brushless fan generally does not exceed 2.5A,depending on the speed and design of the fan.15051 high speed axial brushless fan commonly have ball bearings and oil bearing,providing different life and performance.Heat dissipation fan models with supercharging technology provide high wind pressure and are suitable for heat dissipation environments where resistance needs to be overcome.The 15051 high speed axial brushless fan supports PWM intelligent speed regulation,FG function (fan status detection),waterproof (such as IP54 level),and soft start.The long life design and low vibration of the 15051 high speed axial brushless fan make it suitable for long operation.
MODEL | Bearing System | Rated Voltage | Freq. | Rated Current | Power | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
Ball | Sleeve | VAC | Hz | A | W | RPM | CFM | mmH2O | dBA | g | |
15051MSL110/125A | √ | 110-125 | 50/60 | 0.50/0.45 | 34/32 | 2400/2600 | 198/230 | 16.0/20.3 | 50/55 | 900 | |
15051MBL110/125A | √ | ||||||||||
15051MSL200/240A | √ | 200-240 | 0.23/0.21 | ||||||||
15051MBL200/240A | √ | ||||||||||
15051HSL380A | √ | 380 | 0.15/0.14 | 36/34 | |||||||
15051HBL380A | √ |
GENERAL SPECIFICATIONS | |
Bearing Type | Sleeve Bearing&Ball Bearing |
Material | Impeller; Plastic; Frame; Aluminum Alloy |
LeadWire | UL Type |
Operation Temperature | -10℃-65℃,35%-85%RH |
Storage Temperature | -40℃-70℃,35%-85%RH |
