Product Description

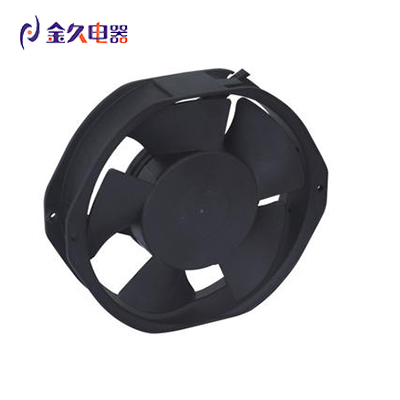

Efficient Air Pressure Cooling Fan
| MODEL | Bearing System | Rated Voltage | Freq. | Rated Current | Power | Rated Speed | Air Flow | Air Pressure | Noise Level | Weight | |
| Ball | Sleeve | VAC | Hz | A | W | RPM | CFM | mmH2O | dBA | g | |
| 17038MBL110/125A | √ | 110-125 | 50/60 | 0.36/0.50 | 30/50 | 2400/2800 | 192/228 | 10/13 | 60/65 | 1000 | |
| 17038MBL200/240A | √ | 0.18/0.28 | |||||||||
| GENERAL SPECIFICATIONS | |
| Bearing Type | Sleeve Bearing&Ball Bearing |
| Material | Impeller; Plastic; Frame; Aluminum Alloy |
| LeadWire | UL Type |
| Operation Temperature | -10℃-65℃,35%-85%RH |
| Storage Temperature | -40℃-70℃,35%-85%RH |
