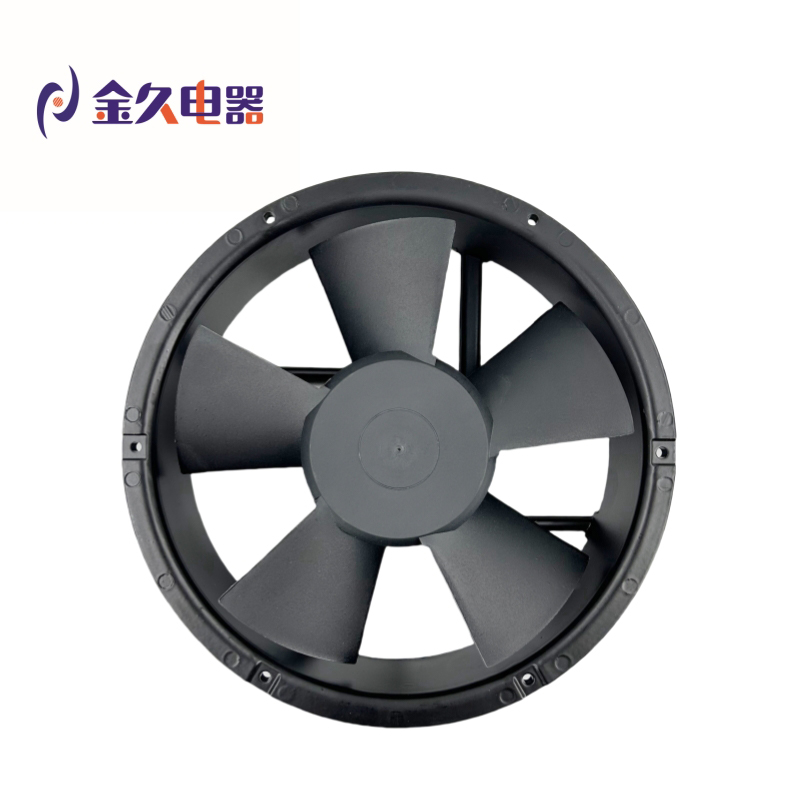

22060 Large Airflow Axial Flow Fan

In recent years,the competition in the large airflow axial flow fan industry can be described as quite fierce,science and technology continue to innovate,and various types of different models have been developed to meet market demand.The large airflow axial flow fan is divided into AC and DC,220V is the most commonly used AC fan in China,380V is generally used for industrial equipment.The appearance shape of the large airflow axial flow fan is square,round and oval.According to the wind direction flow is divided into four types:axial cooling fan,mixed cooling fan,centrifugal cooling fan,tubular cooling fan.Large airflow axial flow fan can be used for computer hardware,including desktop CPU heat sinks,graphics card heat sinks,server chassis heat sinks,etc.It can also be used in electronic equipment,power supplies,network equipment,industrial control equipment and other internal components that require efficient heat dissipation.It is used for cooling battery packs and cooling electronic control units in automobiles and vehicles.The large airflow axial flow fan can also be used in various industrial equipment, outdoor and harsh environment equipment and medical equipment.



MODEL	Bearing System		Rated Voltage	Freq.	Rated Current	Power	Rated Speed	Air Flow	Air Pressure	Noise Level	Weight
	Ball	Sleeve	VAC	Hz	A	W	RPM	CFM	mmH2O	dBA	g
22060MBL110/125A	√		110-125	50/60	0.84/0.76	65/61	2200/2600	360/388	24/25	50/56	1600
22060MBL200/240A	√		200-240		0.32/0.28	55/49
22060MBL380A	√		380		0.23/0.20	62/54		388	25.4	56



GENERAL SPECIFICATIONS
Bearing Type	Sleeve Bearing&Ball Bearing
Material	Impeller; Plastic; Frame; Aluminum Alloy
LeadWire	UL Type
Operation Temperature	-10℃-65℃,35%-85%RH
Storage Temperature	-40℃-70℃,35%-85%RH
