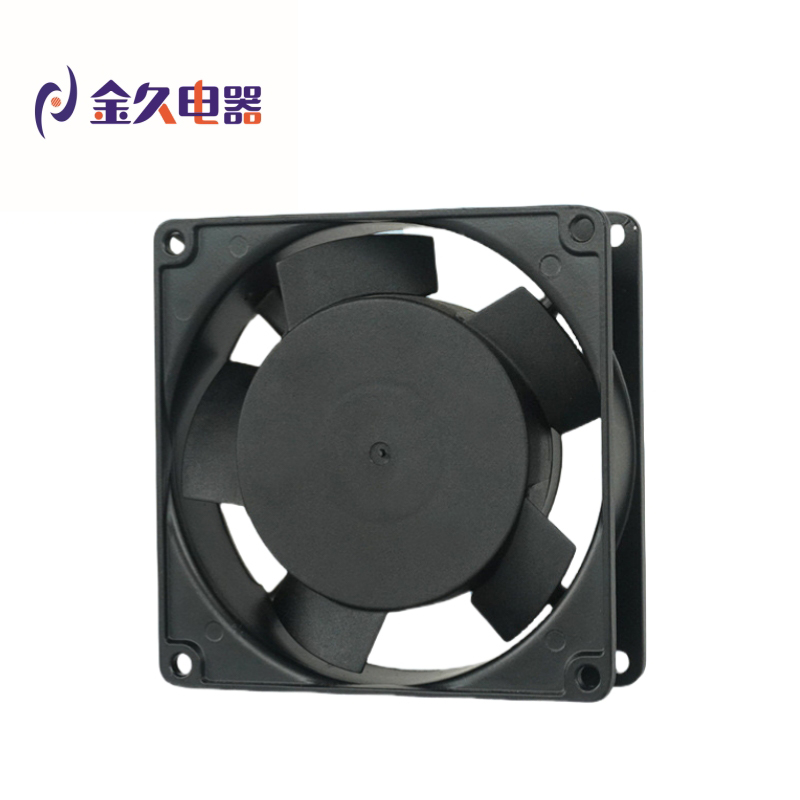

09225 Medical Device Silent Cabinet Exhaust Cooling Fan

9225 Medical Device Silent Cabinet Exhaust Cooling Fan

It is usually installed in the cabinet of electronic and electrical equipment, and can also be integrated with the motor.

Send Inquiry
Product Description

A medical device silent cabinet exhaust cooling fan is a fan that cools the device and can be inside or outside the chassis. The medical device silent cabinet exhaust cooling fan will bring the cooler air to the inside of the chassis,expel the hotter air inside,and let the air cool other parts through the heat sink.Some devices,such as computers,often use axial fans,and sometimes centrifugal fans.Medical device silent cabinet exhaust cooling fan come in some standard sizes and are controlled by a 3 - or 4-pin electronic fan connector.In recent years,in addition to improving the basic functions such as noise and power consumption,it has also evolved a diversified medical device silent cabinet exhaust cooling fan with lighting effects.Medical device silent cabinet exhaust cooling fan are widely used in computers,communication products, photoelectric products,consumer electronics,automotive electronic equipment,exchanger,medical equipment,heaters,air conditioners,frequency converters,cash machines,automotive freezers,welding machines,induction cookers,audio equipment,environmental protection equipment,refrigeration equipment and other traditional or modern instruments and equipment.



MODEL Bearing System Rated Voltage Freq. Rated Current Power Rated Speed Air Flow Air Pressure Noise Level Weight
Ball Sleeve VAC Hz A W RPM CFM mmH2O dBA g
9225MSL110/125A   110-125 50/60 0.14/0.12 14/12 2300/2500 28.3/31.8 3.0/4.6 35/37 250
9225MBL110/125A   2400/2600 29.7/33.2 3.3/4.8
9225MSL200/240A   200-240 0.07/0.06 2300/2500 28.3/31.8 3.0/4.6
9225MBL200/240A   2400/2600 29.7/33.2 3.3/4.8



GENERAL SPECIFICATIONS
Bearing Type Sleeve Bearing&Ball Bearing
Material Impeller; Plastic; Frame; Aluminum Alloy
LeadWire UL Type
Operation Temperature -10℃-65℃,35%-85%RH
Storage Temperature -40℃-70℃,35%-85%RH



9225 Medical Device Silent Cabinet Exhaust Cooling Fan
