Product Description

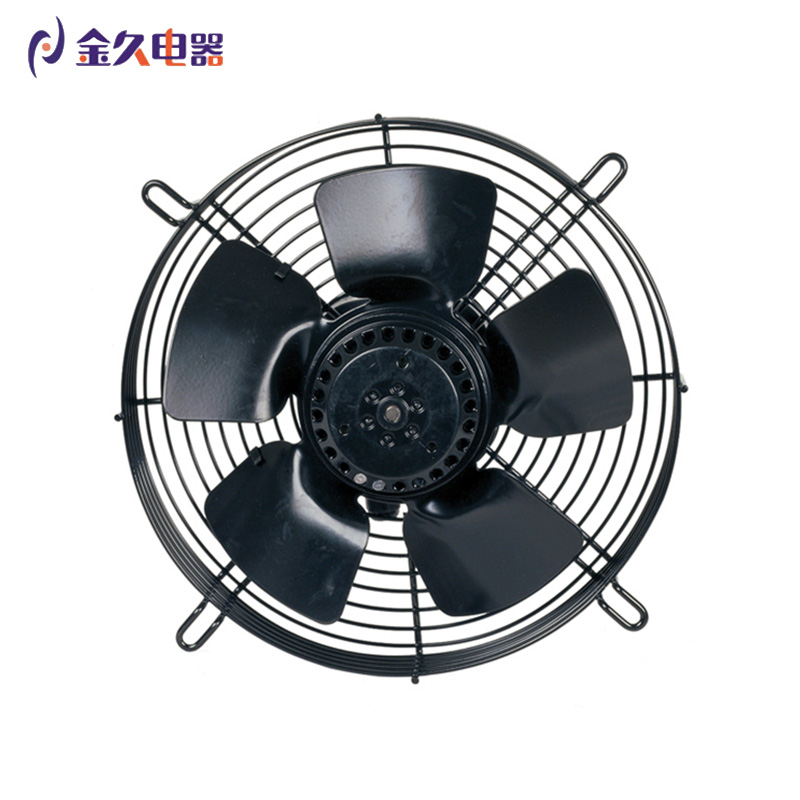

YWFΦ200 single phase 220v external rotor motor axial fan is a kind of equipment used for ventilation and air conditioning, usually single phase 220v external rotor motor axial fan used for refrigerator cold storage equipment or ventilation and heat dissipation equipment, ventilation and exhaust systems in large buildings, as well as air delivery and gas delivery systems in industrial production. single phase 220v external rotor motor axial fan is divided into single-phase asynchronous capacitor running two and three phase asynchronous operations. Single-phase capacitor running motor is 120V, 60Hz or 220-240V, 50/60Hz, three-phase asynchronous running motor is 380V, 50/60Hz. We can also produce single phase 220v external rotor motor axial fan with different voltages and frequencies according to customer requirements. single phase 220v external rotor motor axial fan according to a different fan impeller diameter from 200 mm to 900 mm, a total of 13 kinds of models The number of blades is 5 pieces, 7 pieces, the material is low carbon steel and plastic material, the blade Angle is a variety of, can choose a wide range.

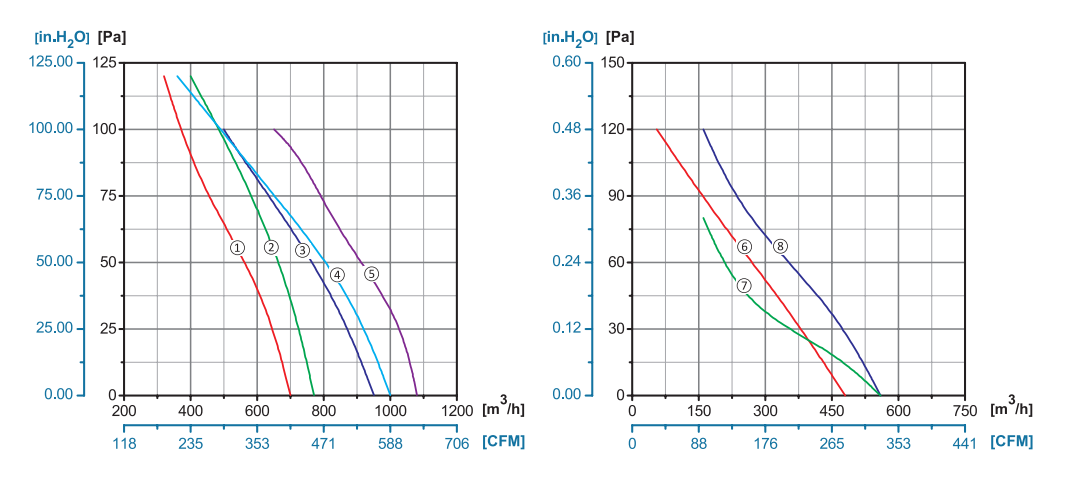

| Type | Voltage | Frequency | Current | Pated Input | Rated Speed | Capacitance | Air Flow | Noise | Curve | Environment temperature | License |
| YWF 4E-200S | 220/230 | 50 | 0.21 | 40 | 1400 | 1.5 | 510/300 | 43 | 8 | -30~60℃ | CCC CE |
| YWF 2E-200S | 220/230 | 50 | 0.3 | 65 | 2300 | 2 | 700/411 | 53 | 1 | ||
| 60 | 0.34 | 80 | 2600 | 2 | 770/452 | 55 | 2 | ||||
| YWF 2D-200S | 380/400 | 50 | 0.21 | 65 | 2600 | / | 700/411 | 53 | 1 | ||
| 60 | 0.24 | 80 | 2600 | / | 770/452 | 55 | 2 |
