YWFΦ350 Round Axial Fan

YWFΦ350 round axial fan are external rotor axial flow fans, rated voltage is 220-240V,50/60Hz or 380-400V, 50/60Hz.

YWFΦ350 round axial fan are usually used in exhaust ventilation, equipment heat dissipation,refrigeration equipment,air conditioning and heating and ventilation industries.

Large air volume and low noise, suitable for projects with small system resistance.

YWFΦ350 round axial fan voltage has a single-phase 220V, three-phase 380V.

There are two air directions of the YWFΦ350 round axial fan: blowing; Suction air.

The outlet mode of the YWFΦ350 round axial fan can be provided with a terminal box or output lead.

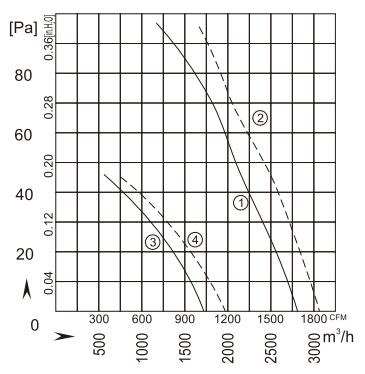

Type	Voltage	Frequency	Current	Pated Input	Rated Speed	Capacitance	Air Flow	Noise	Curve	Environment temperature	License
YWF 4E-350S	220/230	50	0.6	135	1380	4	2700/1588	58	1	-30~60℃	CCC,CE
		60	0.83	190	1550	4	300/1765	60	2
YWF 4D -350S	380/400	50	0.3	135	13600	/	2700/1588	58	1
		60	0.34	170	1500	/	300/1765	60	2
YWF 6E-350S	220/230	50	0.4	75	950	3	1560/920	53	3
		60	0.37	83	1100	3	1800/1060	54	4
YWF 6D-350S	380/400	50	0.29	70	920	/	1560/920	53	3
		60	0.2	80	1050	/	1800/1060	54	4
