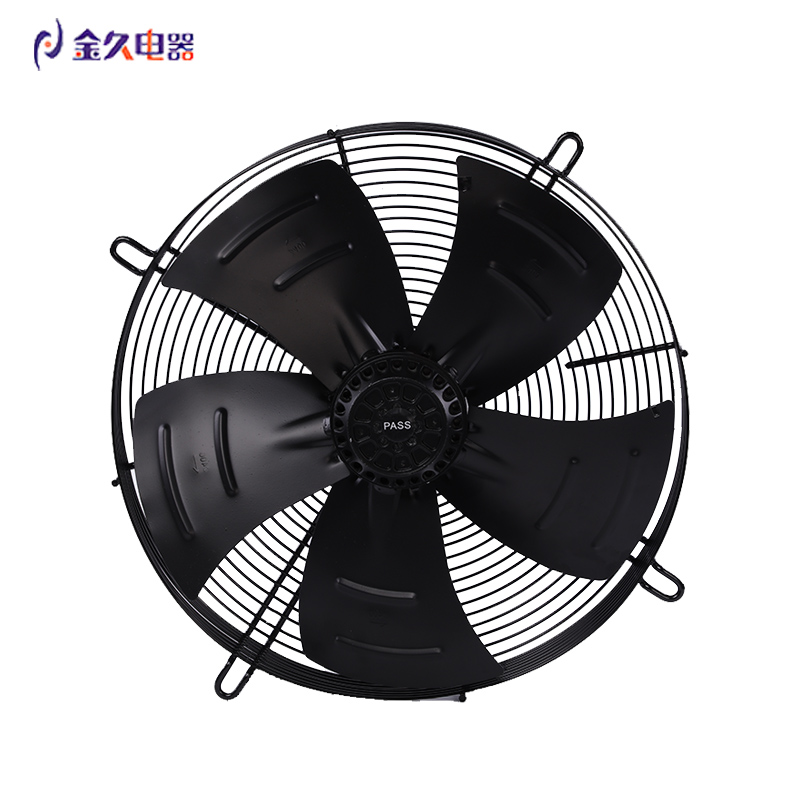

YWFΦ400 Axial Flow Cooling Fan

YWFΦ400 axial flow cooling fan can produce single-speed, two-speed and three-speed motors according to customer needs. Axial flow cooling fan also have different applications according to different installation methods. Air deflector axial flow cooling fan are used for indoor ventilation and ventilation of building facilities, and air deflector surface plate axial flow cooling fan are used for chillers, evaporators, air conditioning outdoor units, radiators, dehumidifiers and other occasions. The net cover axial flow cooling fan is used with heaters, welding machines, high and low temperature boxes, air conditioning module machines, central air conditioning outdoor units and other equipment, and is used for ventilation in kitchen bathrooms, baths, bars, hotels, opera houses and other places, as well as with fresh-keeping cold storage, cold cabinets and other supporting use.



Type	Voltage	Frequency	Current	Pated Input	Rated Speed	Capacitance	Air Flow	Noise	Curve	Environment temperature	License
YWF 4E-400S	220/230	50	0.9	180	1350	4	3700/2176	60	1	-30~60℃	CCC,CE
		60	1.22	260	1580	4	4100/2411	62	2
YWF 4D-400S	380/400	50	0.5	180	1370	/	3700/2176	60	1
		60	0.47	240	1620	/	4100/2411	62	2
YWF 6E-400S	220/300	50	0.5	100	950	4	2600/1530	49	3
		60	0.54	120	1100	4	3000/1785	52	4
YWF 6D-400S	380/400	50	0.31	100	930	/	2600/1530	49	3
		60	0.31	120	1100	/	3000/1765	52	4
