Product Description
EC fan motor, also known as an electronic commutator motor or synchronous DC motor, is a type of synchronous motor that uses a direct current power supply. The EC fan motor is essentially a permanent magnet synchronous motor with DC power input and a three-phase AC power supply with an inverter and position feedback. There are various types of motors, and the EC fan motor is the most ideal speed regulating motor today. EC fan motor integrates the advantages of DC motor and AC motor in one, both DC motor good adjustment performance, and AC motor simple structure, no commutation spark, reliable operation and easy maintenance. Therefore, EC fan motor is welcomed by the market and widely used in automobiles, home appliances, industrial equipment and other fields.
| Description | |||||||||
| Protection level | IP65 | ||||||||
| Certification | CCC CE RoHS | ||||||||
| Environment temperature | -40℃-50℃ | ||||||||
| Insulation class | B | ||||||||
| Additional information | |||||||||

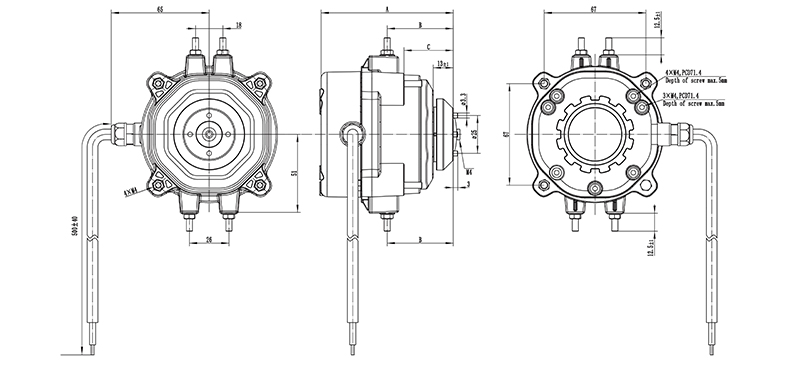

| Nominal data | voltage | Frequency | Speed | Output capacity | Perm. amb. temp | Dimensions | |||
| Type | Features | V | Hz | r/min | W | ℃ | a | b | c |
| 7108 | Standard CW&CCW 2 Speeds Vari-speed | AC115/230 | 50/60 | 1300 〜1800 | 5 | -40℃-50℃ | 83 | 43.5 | 32.5 |
