YZF 26 Shaded Pole Fan Motor
Mainly used in ventilation equipment such as commercial supermarkets, catering, refrigerators, and medical cabinets.
YZF 4Q Refrigerator Freezer Condenser Motor
YZF serious motor is single-phase AC shaded pole motor,widely used in radiators,condenser,evaporators and other refrigeration equipment and warm air blower equipment.
EQM7112 Electronically Commutated Motor
Waterproof structure design, safe and reliably
EQM7120 Single-phase Induction Motor
The design of EQM7120 adopts advanced electronic control technology, with high safety level, high IP protection class, high reliability, and multiple control methods.

EQM7108L Brushless Direct Current Motor

EQM7108l is a newly launched DC motor model by our company, which has a low price.Compared with EQM7108, it does not have similar functions such as dual speed, forward and reverse, power on reverse, etc. Moreover, this motor is not a constant speed DC motor. When it leaves the factory, we give it a speed of 1800RPM, and when it is unloaded, its speed is 1800. As the load gradually increases, the speed will gradually decrease, and the speed changes with the load.However, the conventional 71 series and 48 series motors, the speed will not change with therated load.

Send Inquiry

Product Description

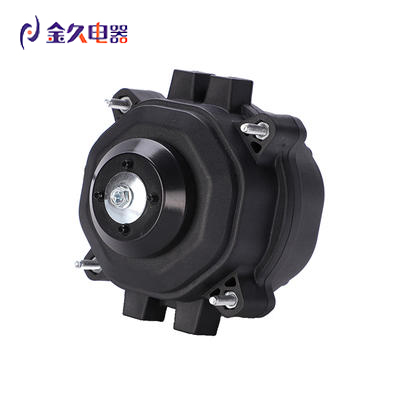

Brushless Direct Current Motor

ECM7108L brushless direct current motor are energy efficient and can replace ordinary covered pole motors. With the new electronic conversion technology and the application of environmentally friendly materials, the working efficiency of brushless direct current motors has increased by 60%, compared to 20% for ordinary motors. brushless direct current motors can not only increase productivity, but also reduce energy consumption and carbon dioxide emissions. The EC motor is a permanent magnet brushless direct current motor based on control and AC. We continue to improve and pursue more energy efficient, more stable, more popular and more environmentally friendly products. At present, our company offers two series of seven different models of brushless direct current motor. Our EC motors are mainly used in refrigerators, refrigerated display cases, kitchen freezers, ice makers and supermarket cold chains.

MODEL	Voltage	Frequency	Load	RPM	dp	mm/s	W	%
EQM7108L	100-240	50/60	200/34°	0~1800	40	1.2	7	20
	Blade 170mm aluminum fan blade				Blade 200mm aluminum fan blade
	28°		34°		28°		34°
	2.5W		3.6W		5.5W		6.8W

Brushless Direct Current Motor

Products

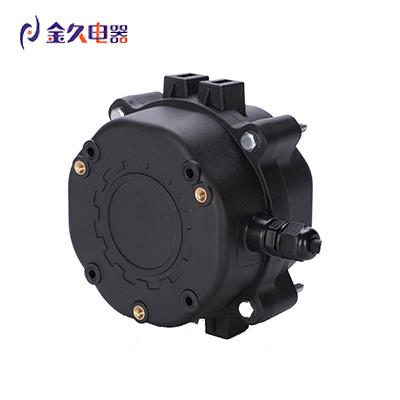

EQM7108L Brushless Direct Current Motor
