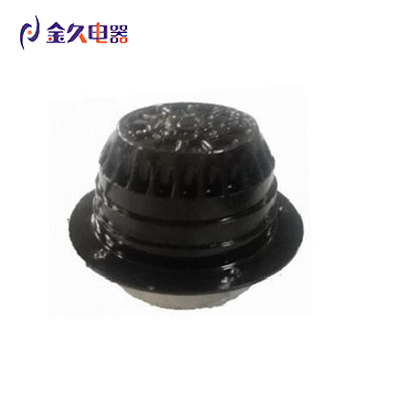

102 Serious Air Curtains Motor

An 102 serious air curtains motor is a motor in which the moving rotor is rotated around an internal stationary stator. 102 serious air curtains motor transmit torque directly from the rotating external rotor, for example to a fan wheel mounted directly on the rotor. Because the magnetic field area of an external rotor motor is significantly larger than that of an internal rotor motor with the same component, greater machine power is generated, resulting in high torque. The interaction surface between the rotor and stator of the 102 serious air curtains motor is large, so the efficiency is high and the energy consumption is relatively low. The compact size between the rotor and the stator in the 102 serious air curtains motor and the robust design make its design more space-saving. Due to the use of electrical commutation, 102 serious air curtains motor designed as electronic commutation motors have very low mechanical wear.Depending on the technology, it can be controlled by integrated electronics or upstream frequency converters for precisely adjustable speed ranges.Depending on the application, low noise operation is possible without gears or mechanical transmission.

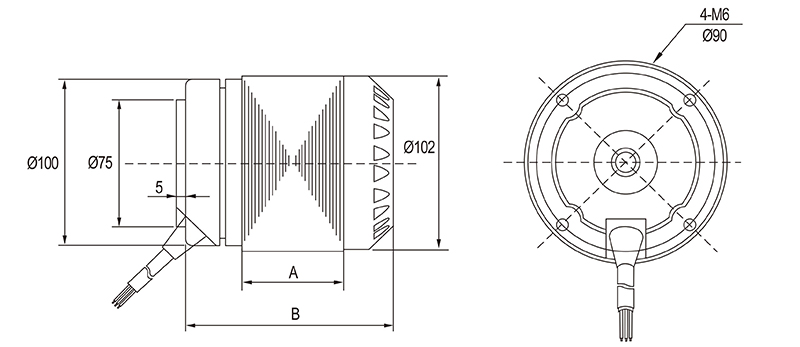

MODEL	A	B
YWF-M102-xS-35	35	105
YWF-M102-xS-47	47	117
YWF-M102-xS-60	60	130



Type	Voltage	Frequency	Current	Input Power	Speed	Capacitor	Net weight	Curve
	V	HZ	A	W	R/min	μF	Kg
YWF-M4S-102-35s	220	50	0.5	110	1350	4	2.5	①
	120	60	1.65	190	1600	16	2.5	ⓐ
YWF-M6S-102-35s	220	50	0.45	100	900	2.5	2.5	②
	120	60	0.7	80	1080	8	2.5	ⓑ
YWF-M4S-102-47s	220	50	0.7	150	1350	5	3.5	③
	120	60	2.35	270	1600	22	3.5	ⓒ
YWF-M6S-102-47s	220	50	0.55	120	850	3	3.5	④
	120	60	1.15	135	960	12	3.5	ⓓ
YWF-M4S-102-60s	220	50	1	215	1350	6	4.5	⑤
	120	60	2.55	300	1600	32	4.5	ⓔ
YWF-M6S-102-60s	220	50	0.45	145	880	4	4.5	⑥
	120	60	1.5	180	1050	20	4.5	ⓕ
