92 Serious Outer Rotor Photoelectric Motor

The rotor of 92 serious outer rotor photoelectric motor is located on the outside of the stator,which usually has a large outside diameter and places the stator inside it. This design allows the outer rotor photoelectric motor to have higher stability in some applications, especially when large loads are required. The rotating part of the outer rotor photoelectric motor is usually surrounded by a fixed coil, so its structural design is more open. Due to the position of the rotor and its geometry, the outer rotor photoelectric motor exhibits more stable characteristics in the output torque, and in some high-load applications such as fans, centrifugal pumps, etc., the outer rotor photoelectric motor is designed to provide higher torque and better heat dissipation. The rotor of the outer rotor photoelectric motor is located outside, and the heat dissipation is more effective, which helps to extend the service life of the motor. The outer rotor photoelectric motor has better stability and durability under high load conditions. During operation, the outer rotor photoelectric motor is quieter than the internal rotor motor, suitable for noise sensitive applications.

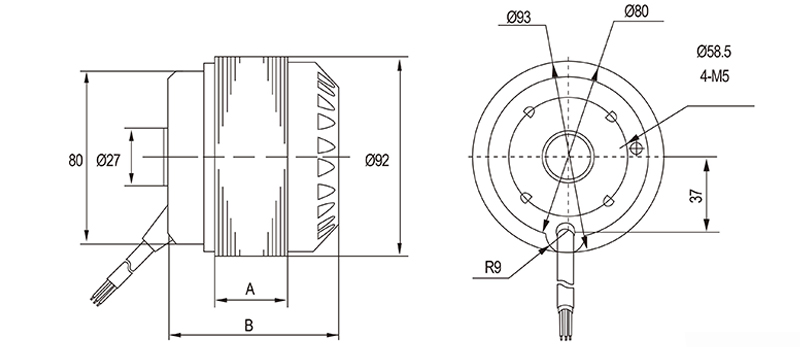

MODEL	A	B
YWF-M92-xS-15	15	66
YWF-M92-xS-25	25	76
YWF-M92-xS-35	35	86
YWF-M92-xS-45	40	91



Type	Voltage	Frequency	Current	Input Power	Speed	Capacitor	Net weight	Curve
	V	HZ	A	W	R/min	μF	Kg
YWF-M2S-92-15s	220	50	0.25	55	2300	2	1	①
	120	60	0.65	75	2500	8	1	ⓐ
YWF-M4S-92-15s	220	50	0.2	55	1200	1.5	1	②
	120	60	0.35	40	1700	5	1	ⓑ
YWF-M2S-92-25s	220	50	0.4	80	2400	3	1.5	③
	120	60	1.05	120	2800	10	1.5	ⓒ
YWF-M4S-92-25s	220	50	0.3	65	1250	2	1.5	④
	120	60	0.55	65	1600	8	1.5	ⓓ
YWF-M2S-92-35s	220	50	0.65	145	2500	4	2	⑤
	120	60	1.75	210	2500	16	2	ⓔ
YWF-M4S-92-35s	220	50	0.45	100	1300	3	2	⑥
	120	60	0.85	100	1550	10	2	ⓕ
YWF-M2S-92-42s	220	50	0.97	215	2500	6	2.2	⑦
	120	60	2	235	2600	24	2.2	ⓖ
YWF-M4S-92-42s	220	50	0.6	130	1250	5	2.2	⑧
	120	60	1.2	140	1500	20	2.2	ⓗ
