Product Description

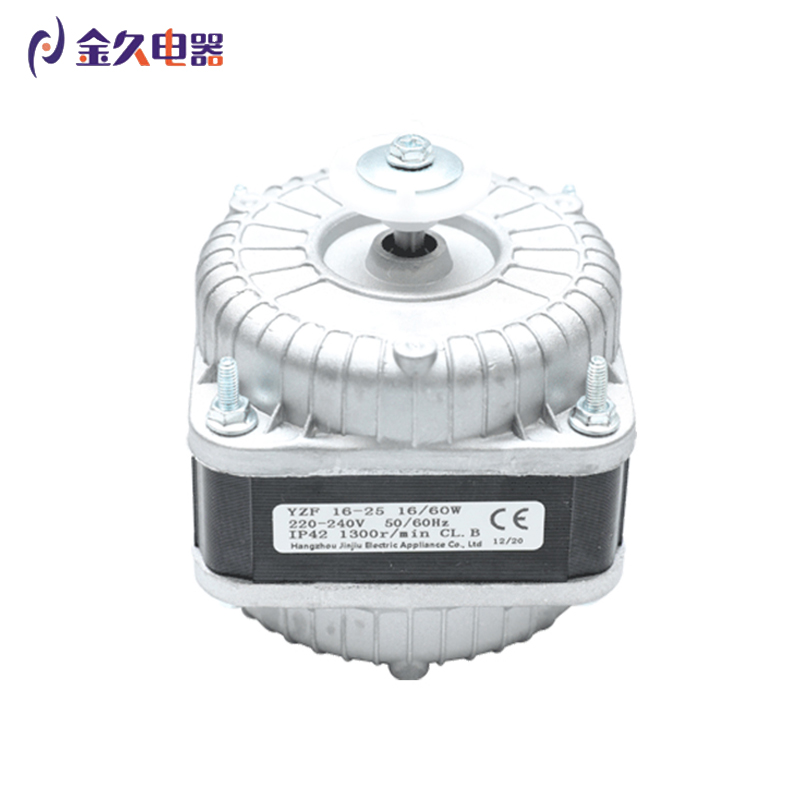

YZF 18 copper aluminum wire fridge motor is single-phase, 4-pole shaded pole motor, rated voltage of 220~240V, 50/60Hz or 110~120V, 60Hz. The copper aluminum wire fridge motor is widely used in radiators, condenser, evaporators and other refrigeration equipment and warm air blower equipment.
Copper aluminum wire fridge motorr output power range from 1W to 34W, adjust the motor's output power by changing the thickness of the core and the winding parameters.
Copper aluminum wire fridge motor insulation class B, protection class IP42. According to customer requirements of protection class IP44 motors.
Output power 10W or less motor using impedance protection, output power greater than 10W 125 to 150 degrees using a thermal protector.
Ambient temperature is -30°C-50°C.
Conventional motor with oil bearing. Recommends that customers install horizontal manner, while the production of ball bearing motor according to the customer.
Copper aluminum wire fridge motor average life of 20000 hours.
Copper aluminum wire fridge motor CE and domestic CCC.
Before the motor, you must be the motor ground wire is connected to the external grounding device effectively.
| Instructions for use | |
| Way of working: | S1 |
| Protection level: | IP42 |
| Insulation class: | B |
| Environment temperature: | -30℃~50℃ |
| Application range: | FAN BLADE Φ172 240~300 m³/h |
| FAN BLADE Φ200 360~460m³/h | |
| FAN BLADE Φ230 480-680m³/h | |
| FAN BLADE Φ250 700~1050m³/h | |
| FAN BLADE Φ300 1100~1500m³/h | |

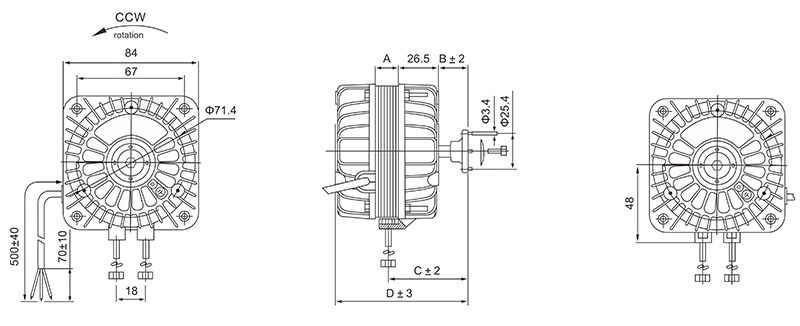

| Type | Voltage | Frequency | Pated Input | Output | Rated current | Rated Speed | Air volume | Fan blade | Net weight | A | B | C | D | E | License |
| (V) | (HZ) | (W) | (W) | (A) | (r/min) | (m³/h CFM) | (mm) | (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| YZF5-13-18 | 220-240 | 50/60 | 20 | 2 | 0.14 | 1300 | 260 | Φ172 | 0.8 | 13 | 12 | 43 | 78 | - | CE CCC RoHS |
| YZF5-13-18 | 220-240 | 50/60 | 25 | 5 | 0.2 | 1300 | 360 | Φ172 | 0.8 | 13 | 12 | 43 | 78 | - | CE CCC RoHS |
| YZF5-13-18 | 220-240 | 50/60 | 30 | 5 | 0.2 | 1550 | 430 | Φ200 | 0.8 | 13 | 12 | 43 | 78 | - | CE CCC RoHS |
| YZF5-13-18 | 220-240 | 50/60 | 33 | 5 | 0.2 | 1550 | 430 | ||||||||
| YZF5-13-18 | 220-240 | 50/60 | 35 | 5 | 0.2 | 1550 | 430 | ||||||||
| YZF6-13-18 | 110-120 | 60 | 33 | 6 | 0.55 | 1550 | 430 | ||||||||
| YZF7-20-18 | 220-240 | 50/60 | 31 | 7 | 0.23 | 1300 | 480 | Φ230 | 1.1 | 19 | 13 | 44 | 85 | - | CE CCC RoHS |
| YZF10-20-18 | 220-240 | 50/60 | 36 | 10 | 0.25 | 1300 | 500 | Φ200 | 1.1 | 19 | 13 | 44 | 85 | - | CE CCC RoHS |
| 220-240 | 50/60 | 40 | 10 | 0.25 | 1300 | 500 | Φ230 | 1.1 | 19 | 13 | 44 | 85 | - | CE CCC RoHS | |
| 110-120 | 60 | 55 | 10 | 0.8 | 1550 | 620 | - | CE CCC RoHS | |||||||
| YZF12-20-18 | 220-240 | 50/60 | 54 | 12 | 0.36 | 1300 | 720 | Φ230 | 1.1 | 19 | 13 | 44 | 85 | - | CE CCC RoHS |
| YZF16-25-18 | 220-240 | 50/60 | 60 | 16 | 0.45 | 1300 | 1000 | Φ250 | 1.4 | 25 | 14 | 45 | 92 | - | CE CCC RoHS |
| YZF18-25-18 | 110-120 | 60 | 70 | 18 | 1.01 | 1550 | 1050 | ||||||||
| YZF25-40-18 | 220-240 | 50/60 | 90 | 25 | 0.7 | 1300 | 1250 | Φ300 | 1.8 | 40 | 18 | 49 | 112 | 31 | CE CCC RoHS |
| 110-120 | 60 | 100 | 25 | 1.4 | 1450 | ||||||||||
| YZF34-45-18 | 220-240 | 50/60 | 110 | 34 | 0.85 | 1300 | 1400 | 2 | 45 | 22 | 53 | 121 | 36 | CE CCC RoHS | |
| 110-120 | 60 | 110 | 34 | 1.5 | 1400 |
