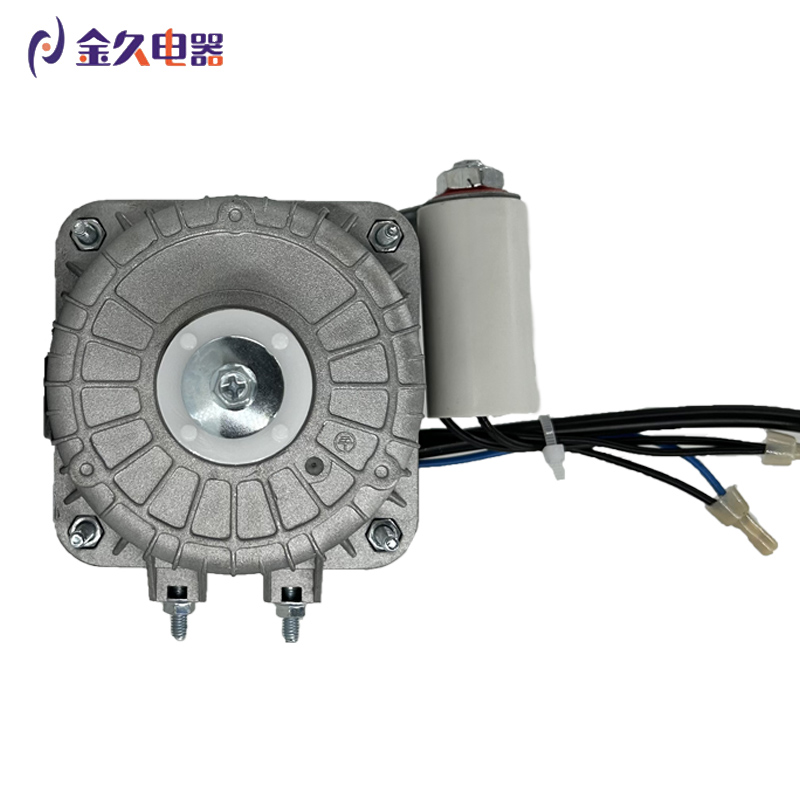

Product Description
Because of its simple structure, efficient performance,fast response and other advantages,capacitor motor is widely used in electric vehicles, industrial automation, aerospace, medical equipment and other fields. With the continuous development of science and technology, the application of capacitor motor will be more and more extensive,providing a more reliable and efficient driving force source for the development of all walks of life. The capacitance of a capacitor motor is a device capable of storing electrical charges. In the circuit, the capacitor can be used as a "buffer" between the electronic components,and play a role in balancing the voltage and current in the circuit. The role of the capacitor during operation is to provide a "buffer" function for the capacitor motor, balancing the voltage and current in the circuit. The capacitor can absorb electromagnetic interference in the capacitor motor and store it in the capacitor, there by protecting the motor from electromagnetic interference and improving the performance and life of the motor. Capacitors can also play a role in improving the efficiency of motor operation. During the operation of the motor, the capacitor can reduce the resistance in the motor circuit, reduce the energy loss in the circuit, and the capacitor can also improve the power factor of the motor and improve the power factor of the motor.
| Instructions for use | |
| Way of working: | S1 |
| Protection level: | IP42 |
| Insulation class: | B |
| Environment temperature: | -30℃~50℃ |

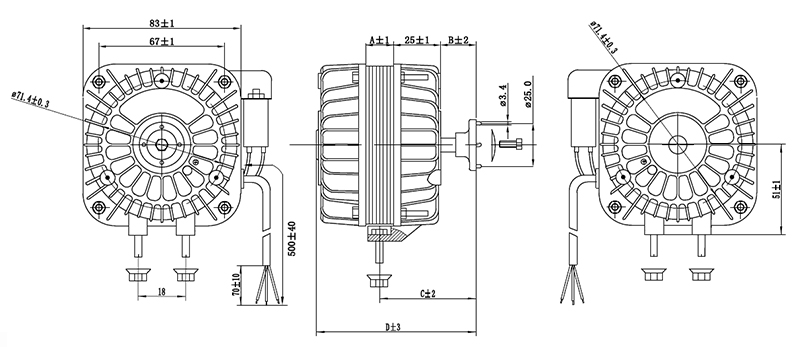

| Type | Voltage | Frequency | Pated Input | Output | Rated current | Rated Speed | Air volume | Capacitance | Fan blade | Net weight | A | B | C | D |
| (V) | (HZ) | (W) | (W) | (A) | (r/min) | (m³/h CFM) | (μF) | (mm) | (kg) | (mm) | (mm) | (mm) | (mm) | |
| YCF20-20-2 | 230 | 50 | 55 | 20 | 0.28 | 2500 | 650 | 2 | Φ200 | 1.2 | 20 | 17 | 42.5 | 99 |
| YCF30-30-2 | 230 | 50 | 110 | 30 | 0.5 | 2500 | 880 | 3 | Φ230 | 1.6 | 30 | 17 | 52.5 | 109 |
| YCF80-50-2 | 230 | 50 | 180 | 80 | 0.78 | 2500 | 1600 | 5 | Φ254 | 2.5 | 50 | 28 | 63.5 | 140 |
| YCF20-20-4 | 230 | 50 | 50 | 20 | 0.25 | 1300 | 1000 | 1.5 | Φ254 | 1.2 | 20 | 17 | 42.5 | 99 |
| YCF30-30-4 | 230 | 50 | 75 | 30 | 0.35 | 1300 | 1400 | 2 | Φ300 | 1.6 | 30 | 17 | 52.5 | 109 |
| YCF60-50-4 | 230 | 50 | 120 | 60 | 0.55 | 1300 | 2200 | 3 | Φ350 | 2.5 | 50 | 28 | 63.5 | 140 |
| YCF25-25 | 230 | 50 | 95 | 25 | 0.45 | 2500 | 1400 | 3 | Φ254 | 1.4 | 25 | 17 | 47.5 | 104 |
