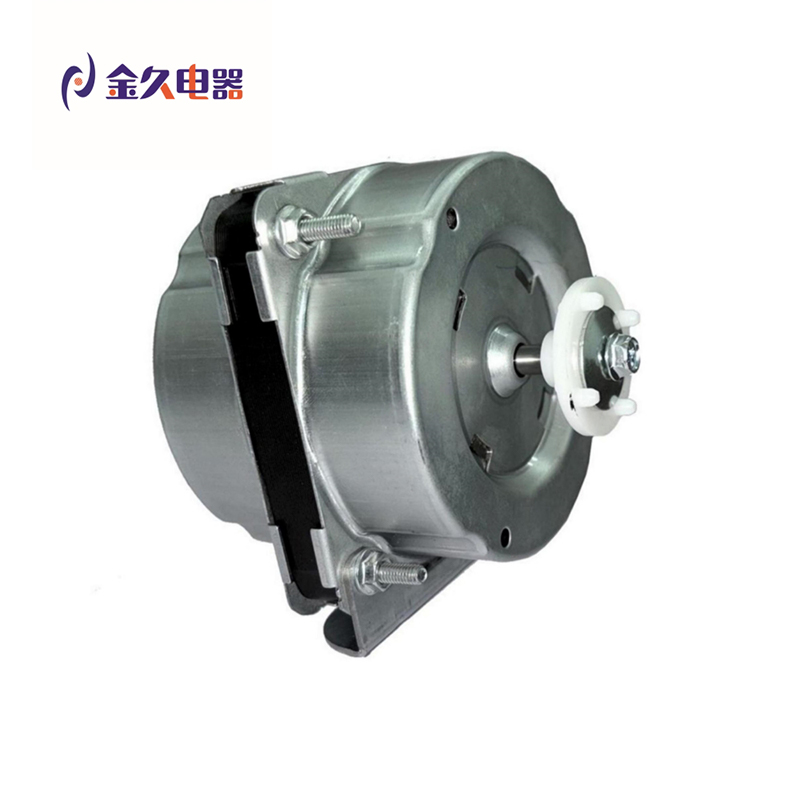

YZF TP Asynchronous Cooling Condensing Motor

Our company developed Innovatively a new type of fan motor which is YZF TP asynchronous cooling condensing motor with low noise and low vibration,which is very cost-effective and has received countless good feedback from customers.



YZF TP asynchronous cooling condensing motor using the one-time high-speed continuous punching process of galvanized sheets,the concentricity can be controlled within 0.002mm;



The precise concentricity of the YZF TP asynchronous cooling condensing motor reduces the operating noise caused by the friction between the shaft and the bearing, so the vibration of the fan can be almost eliminated;



The noise of the old model of the fan is 68 decibels,while this YZF TP asynchronous cooling condensing motor is 61 decibels (tested at a distance of 5cm from the fan blades),representing an 8-decibel reduction.



YZF TP asynchronous cooling condensing motor four major advantages:

1.Consistency advantage,cold drawn iron sheet end cover,highly stable concentricity

2.Appearance advantage,high casting die,and no burrs on the end cover.

3.Advantages in drop resistance,even if dropped from a high place,the bearing will not tilt or get stuck

4.Mass production advantage,high output, and fast delivery time.



Instructions for use
Way of working:	S1
Protection level:	IP42
Insulation class:	B
Environment temperature:	-30℃~50℃
Application range:	FAN BLADE Φ172 240~300 m³/h
	FAN BLADE Φ200 360~460m³/h
	FAN BLADE Φ230  480-680m³/h
	FAN BLADE Φ250  700~1050m³/h
	FAN BLADE Φ300  1100~1500m³/h

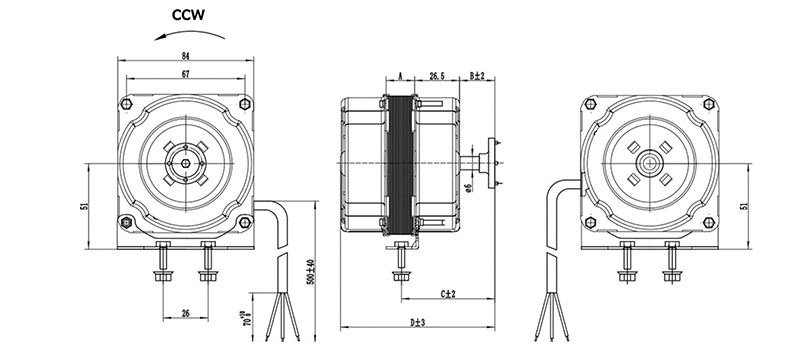

Type	Voltage	Frequency	Pated Input	Output	Rated current	Rated Speed	Air volume	Fan blade	Net weight	A	B	C	D	E	License
	(V)	(HZ)	(W)	(W)	(A)	(r/min)	(m³/h CFM)	(mm)	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)
YZF5-13-26	220-240	50/60	20	2	0.14	1300	260	Φ172	0.8	13	12	43	78	-	CE CCC RoHS
YZF5-13-26	220-240	50/60	29	5	0.2	1300	360	Φ200
YZF6-13-26	110-120	60	33	6	0.55	1550	430
YZF7-13-26	220-240	50/60	31	7	0.23	1300	480	Φ230	1.1	19	13	44	85	-	CE CCC RoHS
YZF10-20-26	220-240	50/60	36	10	0.25	1300	500
	110-120	60	55	10	0.8	1550	620
YZF12-20-26	220-240	50/60	54	12	0.36	1300	720
YZF16-25-26	220-240	50/60	60	16	0.45	1300	1000	Φ254	1.4	25	14	45	92	-	CE CCC RoHS
YZF18-25-26	110-120	60	70	18	1.01	1550	1050
YZF18-30-26	220-240	50/60	70	18	0.5	1300	1050		1.5	30	17	48	101	21	CE CCC RoHS
	110-120	60	75	18	1.1	1450
YZF25-40-26	220-240	50/60	90	25	0.7	1300	1250	Φ300	1.8	40	18	49	112	31	CE CCC RoHS
	110-120	60	100	25	1.4	1450
YZF34-45-26	220-240	50/60	110	34	0.85	1300	1400		2	45	22	53	121	36	CE CCC RoHS
	110-120	60	110	34	1.5	1450
