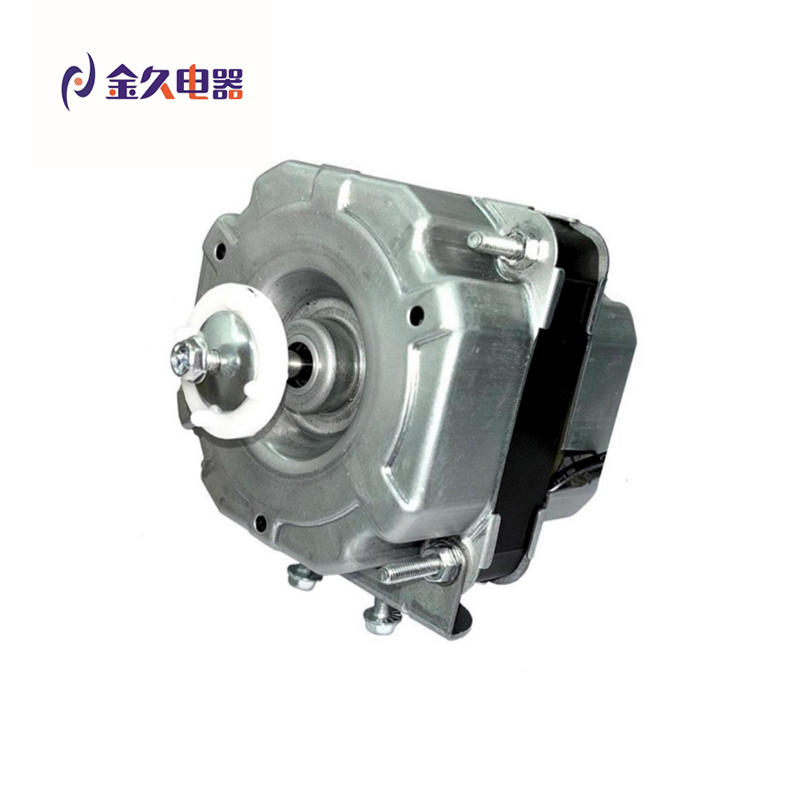

YZF TPB Energy Saving Shaded Pole Fan Motor

YZF TPB energy saving shaded pole fan motor is a kind of DC motor, which refers to the rotating part of the motor with a layer of cover, which not only protects the motor, but also improves the torque performance of the motor. With the popularity of electric vehicles, energy saving shaded pole fan motor are also widely used in electric vehicles. Electric vehicles need efficient, lightweight, low noise motor, energy saving shaded pole fan motor because of its simple structure and efficient performance is widely used in electric vehicles, become the main driving force of electric vehicles. Energy saving shaded pole fan motor are used in various mechanical equipment in the field of industrial automation, such as industrial robots and automated production lines. Rapid response and other advantages can improve production efficiency and reduce production costs. Aerospace equipment needs efficient, reliable, lightweight energy saving shaded pole fan motor,reliable performance and become an important driving force source for aerospace equipment. In the field of medical equipment,the application of energy saving shaded pole fan motor is gradually popularized, and accurate performance has become an important driving force for medical equipment, such as surgical robots and medical instruments.



Instructions for use
Way of working:	S1
Protection level:	IP42
Insulation class:	B
Environment temperature:	-30℃~50℃
Application range:	FAN BLADE Φ172 240~300 m³/h
	FAN BLADE Φ200 360~460m³/h
	FAN BLADE Φ230  480-680m³/h
	FAN BLADE Φ250  700~1050m³/h
	FAN BLADE Φ300  1100~1500m³/h

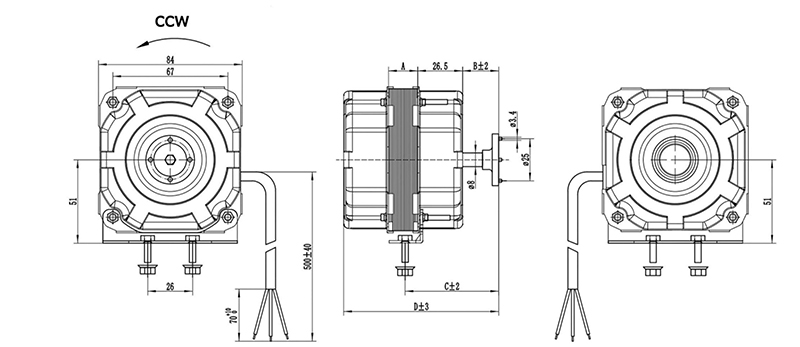

Type	Voltage	Frequency	Pated Input	Output	Rated current	Rated Speed	Air volume	Fan blade	Net weight	A	B	C	D	E	License
	(V)	(HZ)	(W)	(W)	(A)	(r/min)	(m³/h CFM)	(mm)	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)
YZF5-13-26	220-240	50/60	20	2	0.14	1300	260	Φ172	0.8	13	12	43	78	-	CE CCC RoHS
YZF5-13-26	220-240	50/60	29	5	0.2	1300	360	Φ200
YZF6-13-26	110-120	60	33	6	0.55	1550	430
YZF7-13-26	220-240	50/60	31	7	0.23	1300	480	Φ230	1.1	19	13	44	85	-	CE CCC RoHS
YZF10-20-26	220-240	50/60	36	10	0.25	1300	500
	110-120	60	55	10	0.8	1550	620
YZF12-20-26	220-240	50/60	54	12	0.36	1300	720
YZF16-25-26	220-240	50/60	60	16	0.45	1300	1000	Φ250	1.4	25	14	45	92	-	CE CCC RoHS
YZF18-25-26	110-120	60	70	18	1.01	1550	1050
YZF18-30-26	220-240	50/60	70	18	0.5	1300	1050		1.5	30	17	48	101	21	CE CCC RoHS
	110-120	60	75	18	1.1	1450
YZF25-40-26	220-240	50/60	90	25	0.7	1300	1250	Φ300	1.8	40	18	49	112	31	CE CCC RoHS
	110-120	60	100	25	1.4	1450
YZF34-45-26	220-240	50/60	110	34	0.85	1300	1400		2	45	22	53	121	36	CE CCC RoHS
	110-120	60	110	34	1.5	1450
